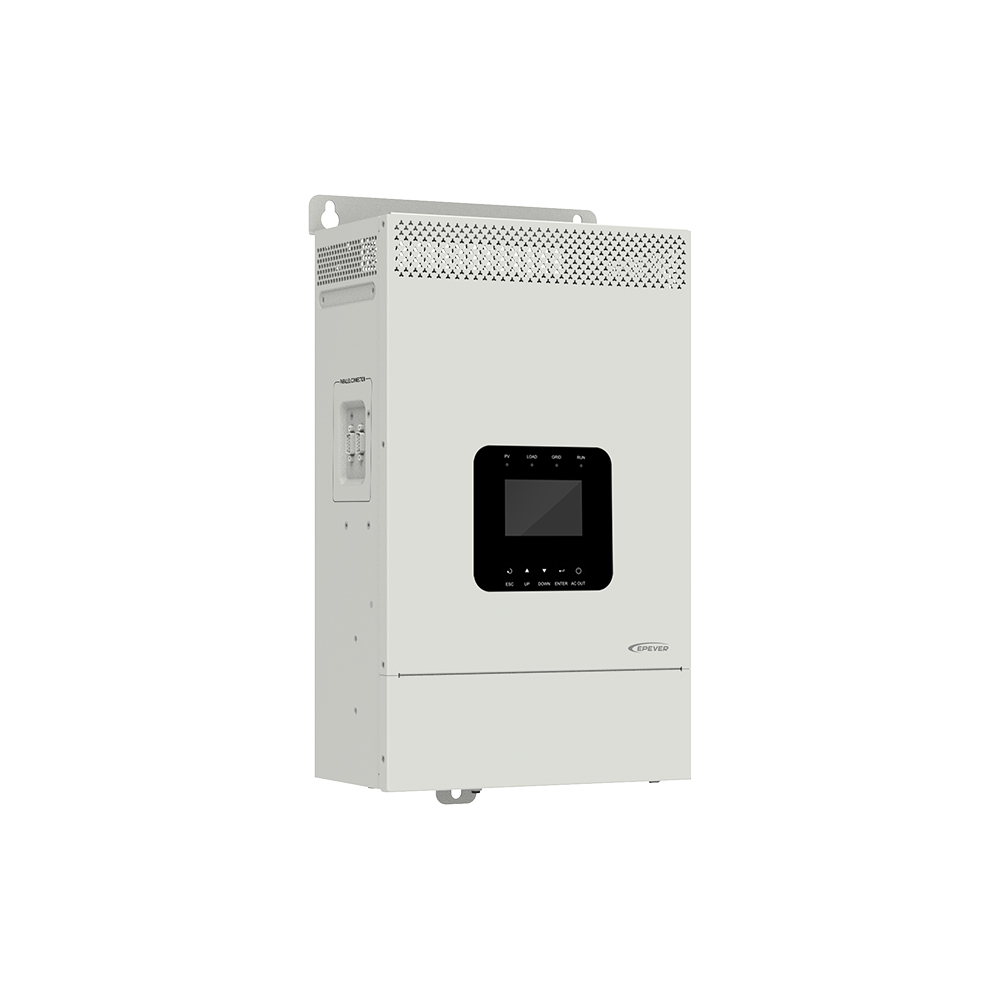

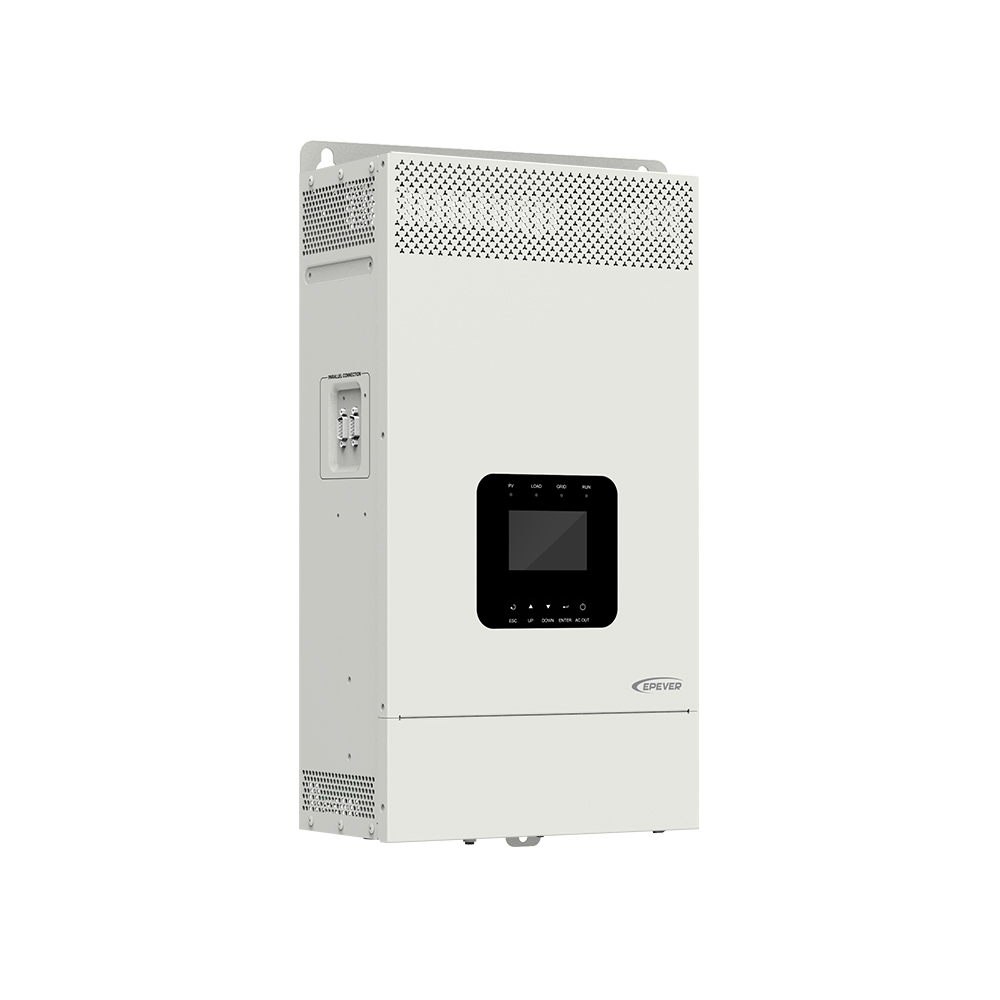

HP Series 20BR (220/230VAC) 3500W/5500W Inverter/Charger
The HP Series 20BR is an advanced hybrid inverter/charger, supporting multiple energy sources like utility, oil generator, and solar. It offers parallel operation, high reliability, and various charging modes. Featuring a large LCD screen and Modbus communication, it provides efficient energy management. With optimized MPPT technology and dual closed-loop control, it maximizes solar power utilization. This inverter ensures high-quality, stable, and reliable electricity for your needs.
Request a quote
- 2-year warranty
- Worldwide support
- Certified & compliant
Specifications
Model: HP5542-AH1050P20BR
- Inverter type
- High Frequency
- Rated Inverter Power (@30℃)
- —
- Max PV open circuit voltage
- 500V
- Inverter Output voltage
- 220V/230V
- Grid Type
- Off-Grid
- Rated battery voltage
- —
- MPPT Voltage Range
- 85V~400V
- Max PV input power
- —
- Maximum PV charging current
- —
- Max. utility charge current
- —
- Output voltage
- 220V/230V
Highlights
- Full intelligent digital energy storage equipment
- Support battery mode or non-battery mode
- Non-battery mode: simultaneously charging with solar (Main) and Utility (Assist)
- Advanced SPWM technology and pure sine wave output
- Parallel operation in single-phase or three-phase for 12 units in a standard application
- PFC technology improves power factor, reduces reactive power, and reduces the demand on the power grid capacity
- Advanced MPPT technology, with maximum tracking efficiency higher than 99.5%
- Some models support two PV inputs to improve PV utilization
- Support charging from multiple types of generators
- Battery voltage controls the output dry contact of the controller to turn on/off the diesel engine and other external equipment
- Battery charging or discharging current limit to be compatible with different types of batteries
- Maximum utility charging current settings to flexibly configure utility charging power
- With the function of historical data recording, up to 25,000, the interval of 15 minutes can be recorded for half a year (the interval time of 1s to 3,600s configurable)
- Multiple LED indicators show system status in real-time
- One-button control of AC output
- Large-size LCD display for better status monitoring
- RS485 communication port with optional WiFi, TCP, or 4G modules for remote monitoring
- Three-stage charging method to ensure battery safety
- Lithium battery communication port to perform safe charging and discharging
- Comprehensive electronic protection
- The PV input terminal of the inverter has an AFCI function, which can be set ON and OFF via the LCD
- -20℃ to +50℃ operating temperature range to meet more environmental requirements
