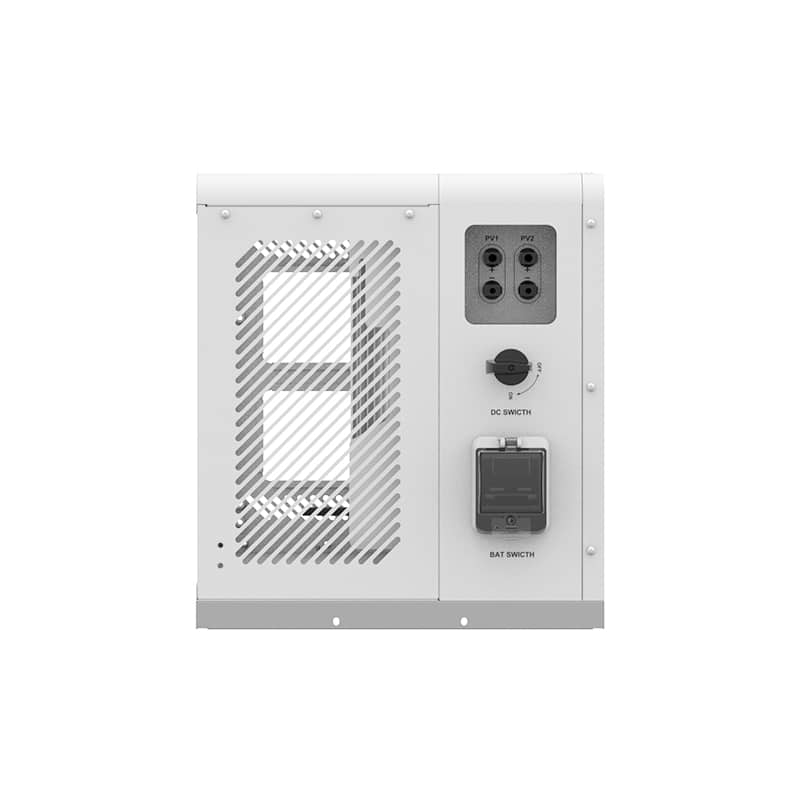

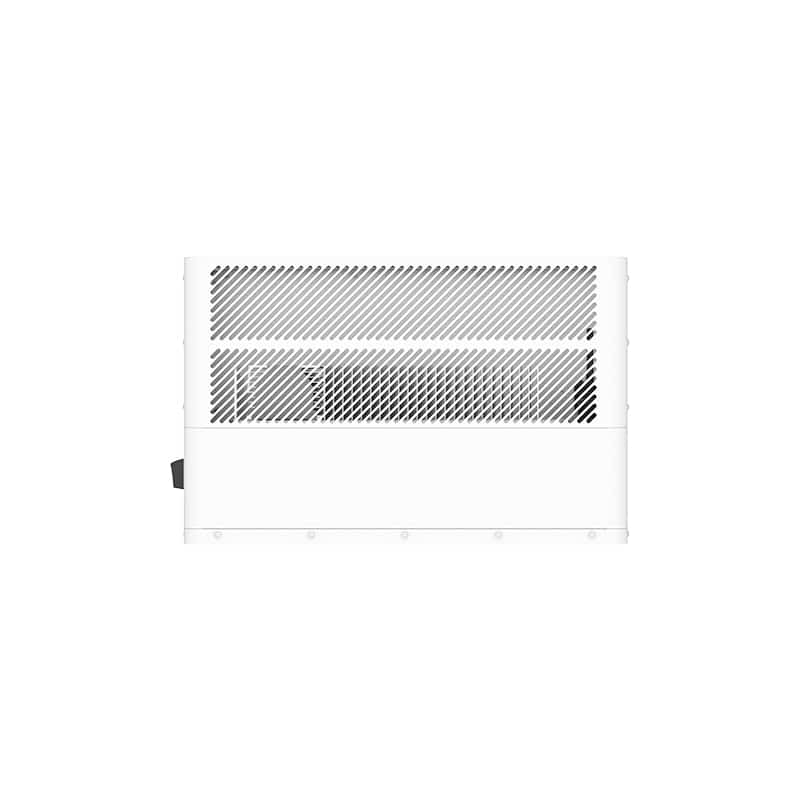

ERS Series 3K-6K On-Grid Hybrid Inverter
Note: ERS is available exclusively as part of the RLS Series Energy Storage System and is not sold separately. Grid tie inverter with backup for residential solar systems. ERS Series is a solar inverter with battery backup and a grid-connected hybrid inverter that supports self-consumption, backup loads, and stable grid interaction for single-phase homes. When paired with LS51100R stackable battery modules, the ERS inverter forms the RLS Series all-in-one energy storage system, delivering a complete residential ESS solution with scalable energy capacity. This system design helps homeowners manage solar generation, battery charging, and utility power more efficiently, while providing reliable backup power during outages.
Request a quote
- 2-year warranty
- Worldwide support
- Certified & compliant
Specifications
Model: ERS6042
Battery Input Data
- Charging Rule
- Self-adaption to BMS
- Battery Voltage Range (V)
- 42-63
- Max. Continuous Charging/Discharging Current (A)
- 120
- Battery Type
- Lithium
PV Input(DC)
- MPPT Operating Voltage Range (V)
- 100-550
- Max. Short Circuit Current per MPPT (A)
- 19.2
- Number of MPPTs
- 2
- Number of Strings per MPPT
- 1
- Max. Input Voltage (V)
- 580
- Max. Input Current per MPPT (A)
- 16
- Start-up Voltage (V)
- 100
- Max. Input Power (W)
- 9000
- Rated Input Voltage (V)
- 360
AC Output (On-grid)
- Max. AC Current Output to Utility Grid (A)
- 28.6
- Rated AC Grid Frequency (Hz)
- 50/60
- Max. Output Apparent Power (VA)
- 6600
- Max. AC Current From Utility Grid (A)
- 55
- THDi
- <3%
- Power Factor
- 0.99 (Adjustable from 0.8 leading to 0.8 lagging)
- Rated Output Voltage (V)
- 230
AC Output (Off-grid)
- Over Power (VA),Time(s)
- 1.25 times of rated power, 300s
- Rated Output Frequency (Hz)
- 50/60 (±0.5%)
- Peak Power (VA),Time(s)
- 1.5 times of rated power, 60s
- Rated Output Voltage (V)
- 220/230/240 (L / N / PE)
- Switch time (ms)
- 10
- THDv (@Linear Load)
- <3%
- Rated Output Power (W)
- 6000
- Rated Output Current (A)
- 26.1
Others
- Self-consumption at Night (W)
- <10
- Topology
- Battery Isolation
- Cooling Method
- Natural
- Mounting Method
- Stack-mounted
- Communication with Meter
- RS485
- Communication with Portal
- WiFi/Bluetooth (External)
- Display
- LCD/LED & APP
- Generator Auto Start-up
- 2 Wire Start - integrated
- Certifications & Standards
- EN/IEC62109, EN/IEC61000, CEI 0-21, RoHS
Mechanical Parameters
- Dimension (L×W×H) (mm)
- 620 x 400 x 446
- Weight (Kg)
- 37.5
Efficiency
- Max. Efficiency
- 98.0%
- European Efficiency
- 97.5%
- Max. Discharging Efficiency
- 94.6%
- MPPT Efficiency
- 99.9%
Protection
- Basic Protection
- PV reverse polarity, AC output overvoltage, Anti-islanding, PV insulation resistance, AC output overcurrent, Grid monitoring, PV string current monitoring, AC output short circuit, Residual current (RCD) detection
- AFCI
- Optional
- DC Switch
- Standard
- SPD
- DC Type II / AC Type III
Environment parameters
- Operating Temperature
- -30℃ to +60℃
- Relative Humidity
- 5% to 95%
- Altitude
- 4000(＞2000 Derating)
- Ingress Protection
- IP65
- Noise Emission (dB)
- <30
Highlights
- All-In-One Design: Integrated hybrid inverter and LiFePO4 battery
- 150% PV oversizing capability
- Max. PV conversion efficiency: 97.6% Battery charge/discharge efficiency: 94.6%
- LCD touch screen with local configuration function
- Smart App: User-friendly operation and monitoring
- Easy installation; Saving labor costs
- Natural cooling; Maintenance-free; Ultra-quiet
- Up to 12 kW grid input: 6 kW for loads + 6 kW for battery charging
- Smart Port: Grid-tied inverter (AC coupling); AC loads; Generator
- UPS-level switching <10ms
- Parallel operation: Max. 9 units; Up to 54kW, 276.18kWh
